1800㎡ Multi-Span Glass Greenhouse Installation Completed On-Site

Our company has completed the Connected-span Glass Greenhouse project in Xinyang City, Henan Province, China.

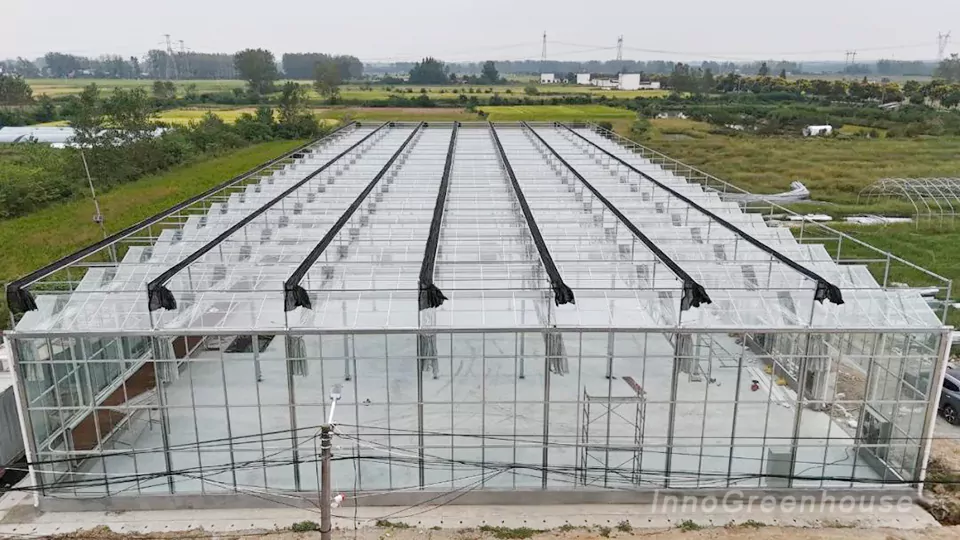

Overall view of the connected glass greenhouse

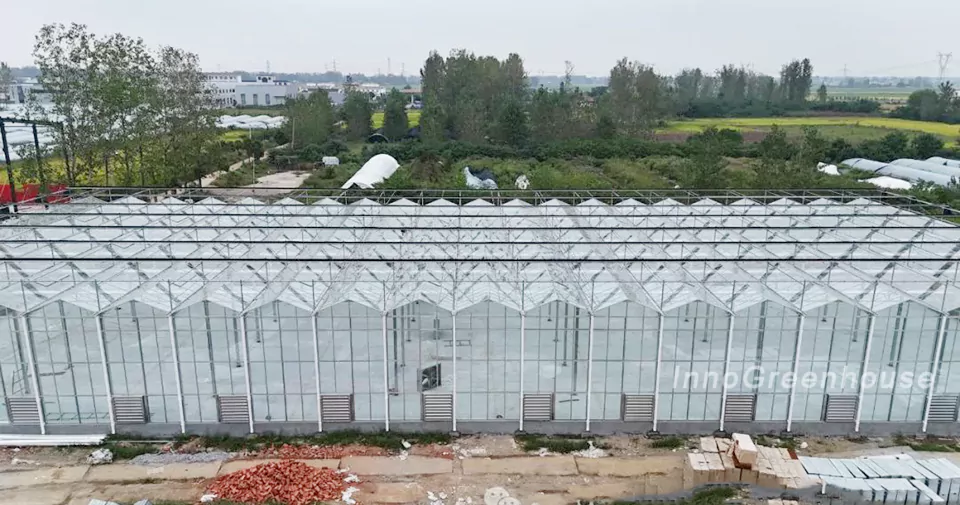

Front view of the connected glass greenhouse

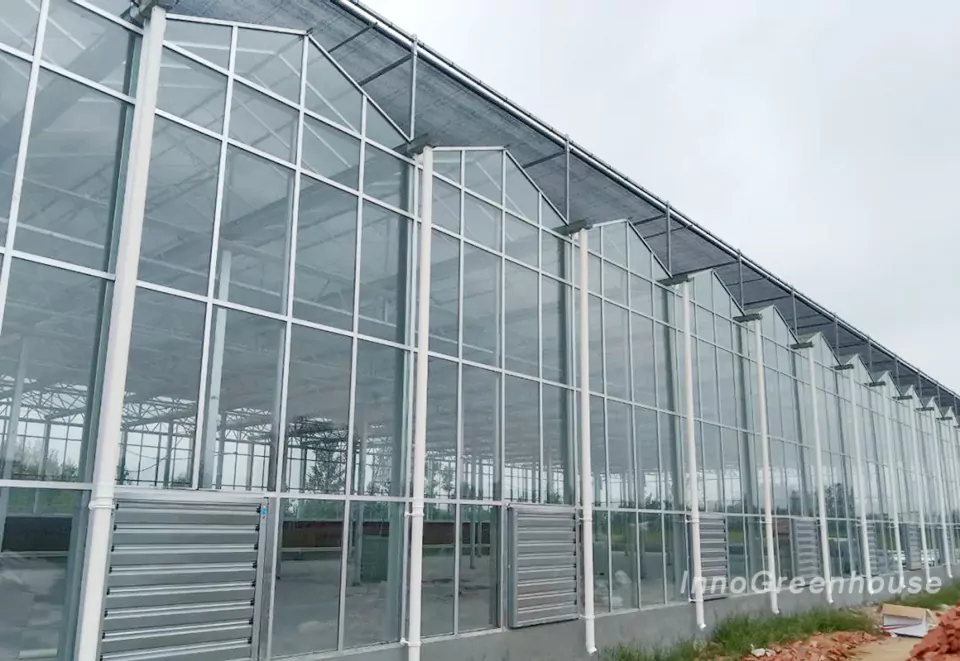

Side view of the connected glass greenhouse

1.  Greenhouse area, height, and other specifications

•  The greenhouse has a span of 9.6 meters, with an internal connected structure consisting of 7 spans, giving a total span of 67.2 meters.
•  The side length is 28 meters, with an eaves height of 6 meters and a total height of 7.5 meters.
•  The total area is 1,881.60 square meters.

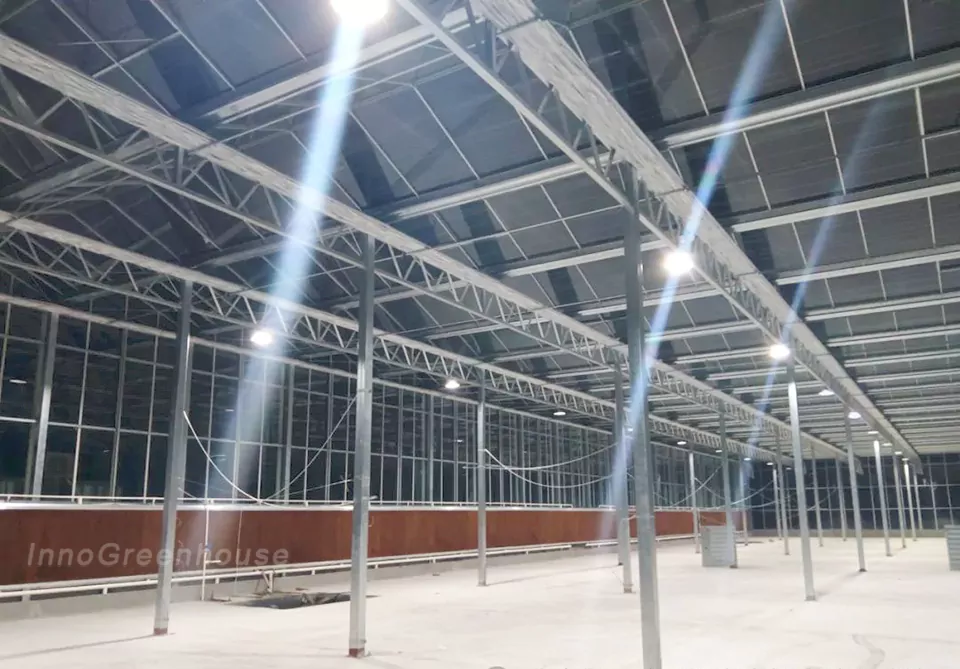

Interior view of the glass greenhouse

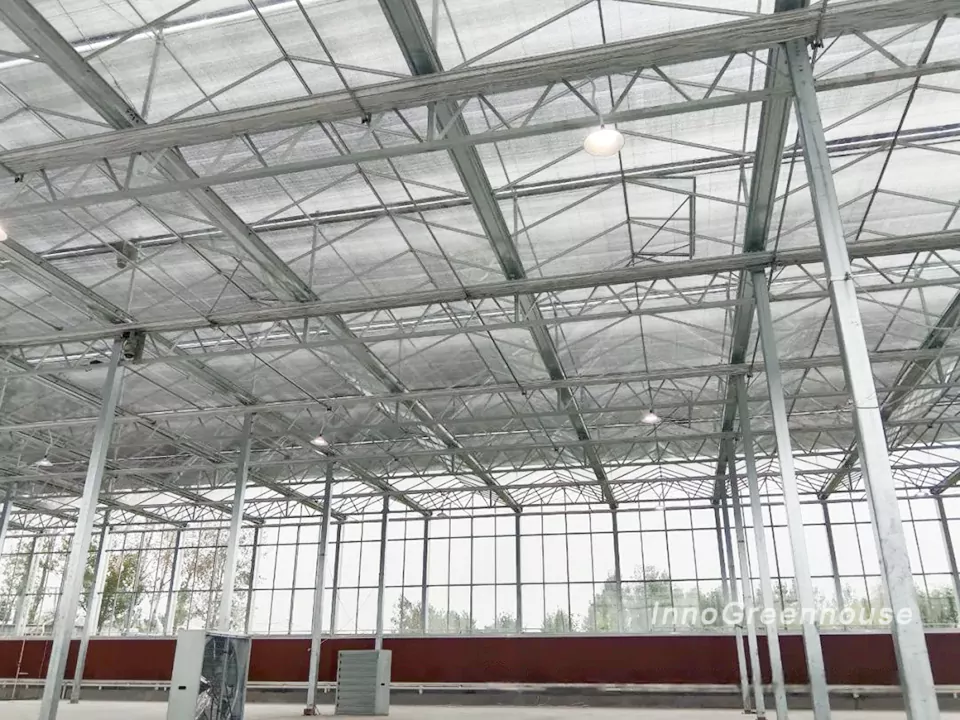

Steel structure diagram of the glass greenhouse

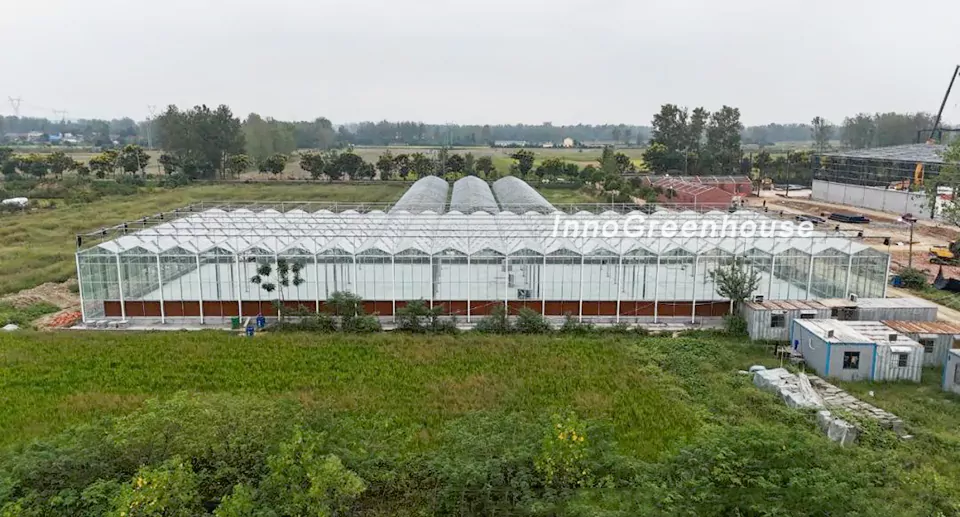

Connected glass greenhouse


2.  Key features of the greenhouse include:

•  Hot-dip galvanized main framework.
•  Roof covered with 5mm single-layer tempered glass, and the sides covered with 5+6A+5mm thick hollow tempered glass.
•  System configuration:
Electric roof ventilation system, electric external shading system, electric internal insulation system, fan and wet curtain ventilation and cooling system, power distribution system, and greenhouse doors.


The material list for the hot-dip galvanized steel framework is as follows:

•  Connected-span greenhouse with a pre-formed mold for the main frame, surface treated with hot-dip galvanizing for rust resistance.
•  Main vertical columns and internal columns: 150×150×3.5mm rectangular steel.
•  End vertical columns: 150×150×3.5mm rectangular steel.
•  Top water channel: 3.0mm thick, made of highly corrosion-resistant galvanized steel plates, bent into shape.
•  Roof purlins and trusses: Made of all-aluminum alloy material.


3.  Aesthetically pleasing，Widely used，Highly popular

The glass greenhouse has an aesthetically pleasing design and is widely used.
It is suitable for growing various vegetables, fruits, flowers, and other plants. It supports multiple cultivation methods, including seedling propagation, sightseeing, plant factories, scientific research, exhibitions, hydroponics, and more.


4.  Size and specifications can be freely customized：

This connected-span greenhouse can be expanded with multiple spans for large-scale construction.
You can customize it based on your terrain and needs to build the greenhouse that suits you.


5.  Build the Greenhouse You Require

Additionally, systems for soilless cultivation，water purification, and more are available.
You can choose the features that best meet your needs and build a greenhouse that’s easy to manage and fits your preferences.
